21.5 Inch Projected Capacitive Touch Screen Sensor with Cover Glass for Touch Monitors

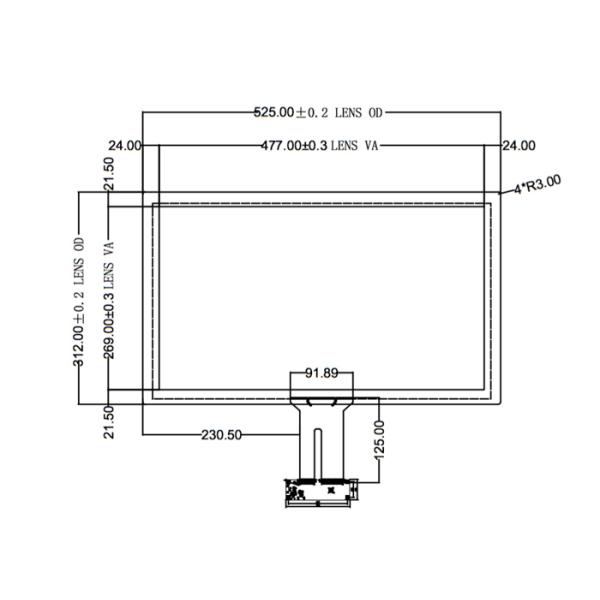

Dimension Drawing
Basic Specifications
| Outline Dimension | 525 x 312 mm | Viewing Area | 477 x269 mm |
| Cover Glass | 2mm Tempered Glass | Sensor Glass | 0.7mm ITO Tehnology |
| Touch Controller | ILITEK ILI2510 | Touch Points | multi-touch, up to 10 points |
Customizing Service
TPS2158757V1 is one of our standard 21.5 inch projected capacitive touch panels. It is powered and driven by ILI2510 from ILITEK. It supports multi-touch, compatible with Windows, Android, and Linux operating systems. Exactly, the touch sensor is the standard model which is always off-the-shelf. The cover glass is customized according to clients' requirements. You can customize the dimension, size, thickness, shape, color and etc. You can also customize the glass type, for example, use a grey glass, or a mirror glass on top of the touch sensor. The coating on the cover glass is also for option, anti-glare, anti-reflective, anti-fingerprint, anti-backteria.
21.5 PCAP Touchscreen List of Ours
| Size | Model No. | View Area | Outline Dimension | Touch controller |
| 21.5 | TPS2158553V1 | 477×269mm | 525×312mm | ILI2510 / SIS9515 |
| 21.5 | TPS2158779V1 | 478×269mm | 534×325mm | ILI2510 / SIS9515 |
| 21.5 | TPS2158919V1 | 477×269mm | 496×292mm | ILI2510 / SIS9515 |
| 21.5 | TPS2158445V1 | 478×269mm | 497×296mm | ILI2510 / SIS9515 |
| 21.5 | TPS2158879V1 | 478×269mm | 534×325mm | ILI2510 / SIS9515 |
Some Advantages of PCAP Touch
1.Hard and wear-resistant.
The surface cover of capacitive screen is tempered glass, and its surface is very hard. 3mm cover glass can pass IK08, and it is good for public applications.
2.High light transmittance: 85%
Capacitive screen is not only used for operation, but more importantly, it is used to watch and enjoy the contents of the screen.
The transmittance of glass capacitive screen is as high as 85%.
3.Smooth touch.
The glass screen is very smooth, and the fingers are like flowing water, which makes the operation feel very smooth.
4.Personalized customization.
The screen can be customized according to your own needs, such as text, logo, glass thickness, shape, and etc.
5.More accurate than other touch technologies because its reaction speed is less than 10ms.
6.Unique widescreen design can bring different visual impact.
FAQ
1.How about the minimum quantity of my order?
It depends on the stock situation. Please contact us for more information.
2. Can I get a lower price if I order in large quantities?
Of course! Welcome to email us to discuss relevant details.
3. How long is the delivery date?
It’s generally 20 working days.
4. Do you have your own factory?
We are a real manufacturer of electronic products. We have dust-free workshops and special equipment.
5. How do you control the quality?
This is very strict. We have passed the GB/T 19001-2016 idt ISO9001:2015 standard certification.
6. How long is the warranty of the product?
Generally, it is one year. If there are special requirements, it can be 2-3 or 5 years.
